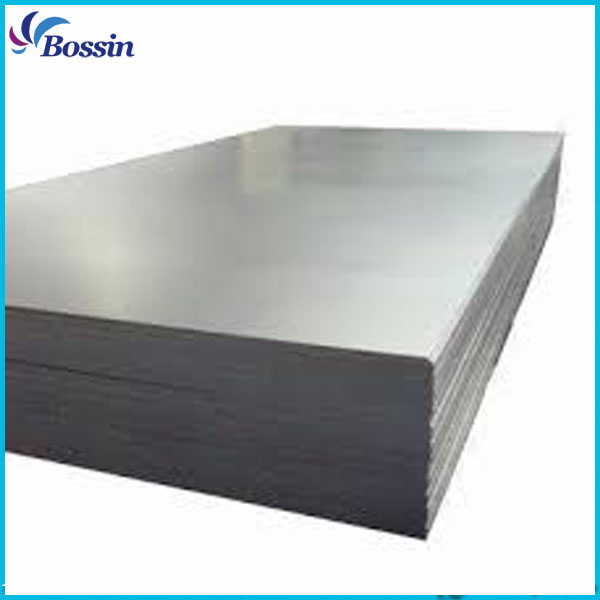

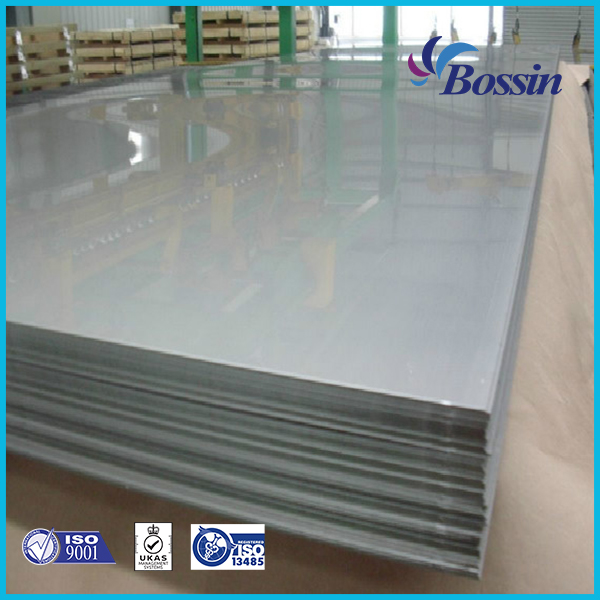

Titanium Plate
ti plate 5 Titanium Plate for surgical implant
ti plate 1

Titanium Plate

Category:
  • Description
  • Additional Information
  • Packaging & Delivery

Product Description

All Titanium products provide by our company are made of fine titanium sponge .After strict quantity control in ingot casting ,forging and machining processes, they are in full compliance with relative standards for their uniform Chemical composition and Mechanical properties stable chemical performance meeting customer’s various and specific requirements.

Grade

GR 1, GR 2, GR 3, GR 4,GR 5,GR 7,GR 9,GR 12,GR23

Standard

ASTM B265, ASTM F67,ISO5832-2,ASTM F136 ISO5832-3

AMS 4911, AMS 4905, AMS 4907, MIL-T-9046

Specification

Thickness (0.3—4.0)× Width≤2500×≤6000mm

Thickness (4.1—100.0)× Width≤3000×≤6000mm

Technics

Hot rolled and cold rolled

Surface

Bright, Polished, Pickling, Acid cleaning, Sandblasting

 Sample

Free sample — Small quantity samples are available at any time

 Large Stock

We haveGR1 GR2 GR3 GR4 with thickness 0.8mm 1.0mm, 1.2mm,1.5mm,1.8mm,2.0mm,3.0mm,5.0mm in stock, and titanium slab in stock, Shorten the delivery time

Our Competitive strengths

  • We have complete set of production equipment for manufacturing titanium Plates, covering the entire process from raw materials to finished products.
  • Quality guarantee: End-to-End traceability, full materials from melt to final product.
  • Directly factory channel, Competitive price,Stable quality.
  • More than 20 years’ experience, exported various of titanium products over than 500 T yearly
  • Professional service to cut much purchasing costs down
  • Shipment of goods -More than 25 countries worldwide.
  • 3000 tons production capability annually.
  • We have win high reputation based on best quality products.
  • Reliable quality on the base of  the same price.

Grade and Chemical Composition (%) :

Grade N(≤) C(≤) H(≤) Fe(≤) O(≤) Al(≤) V(≤) Ni(≤) Ti
GR1 0.03 0.08 0.015 0.2 0.18 / / / bal
GR2 0.03 0.08 0.015 0.3 0.25 / / / bal
GR3 0.05 0.08 0.015 0.3 0.35 / / / bal
GR4 0.05 0.08 0.015 0.2 0.4 / / / bal
GR5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / bal
GR7 0.03 0.08 0.015 0.3 0.25 / / / bal
GR9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / bal
GR12 0.03 0.08 0.015 0.3 0.25 / / 0.6~0.9 bal
GR23 0.05 0.08 0.012 0.25 0.13 5.5~6.5 3.5~4.5 bal

Mechanical property

Grade Tensil strength(≥) Yeild strength(≥)) Elongation(≥)%)
ksi Mpa ksi Mpa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR3 65 450 55 380 18
GR4 80 550 70 483 15
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 483 15
GR12 70 483 20 345 18
GR23 120 828 110 760 10

Additional Information

Dimensions 3000 x 2000 x 200 mm
  • Packaging Details: inner packaging: plastic bag packaged with supporting thing inside; outer packaging: Polywood Case or Wooden Case with strips as you request
  • Delivery Detail: Within 5~15 days
