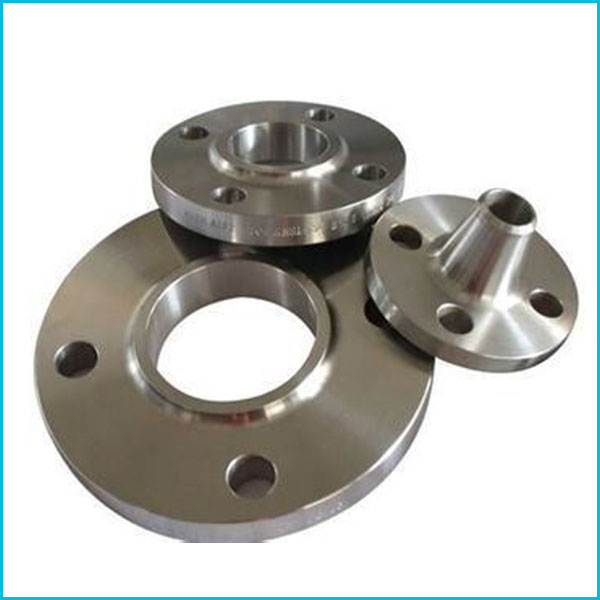

Titanium flange
ASTM B381/ ASME B16.5 Titanium flange with different size
- Description
- Packaging & Delivery
Product Description
- Titanium Flange
- Material: Gr1,Gr2,Gr5,Gr7,Gr9,Gr12
- Standard: ASTM B381/ ASME B16.5
- Size: according to client’s demand
- Applications: industry / chemical / medical / aerospace etc.
| Item name | Titanium flange |
| Standard | ASME/ANSI B16.5,DIN2630~2633,BS etc |
| Material | Gr1,Gr2,Gr5,Gr7,Gr9,Gr12 |
| Size | 1/2”~80”(DN10~600) |
| Pressure rating | 0.6~32Mp |
| (DIN) PN6,PN10,PN16,PN25 though PN250 | |
| (ASNI) CL150,CL300,CL600,CL900,CL1500 | |
| Working temperature | -60°C~250°C |
| Flange surface | FF,RF,TG,RJ etc |
| Quality control | Ultrasonic Testing & Material Test Report |
| Packaging | Plywood case line with foam or as per clients request |
- Packaging Details: inner packaging: plastic bag packaged with supporting thing inside; outer packaging: Polywood Case or Wooden Case with strips as you request
- Delivery Detail: Within 5~15 days
