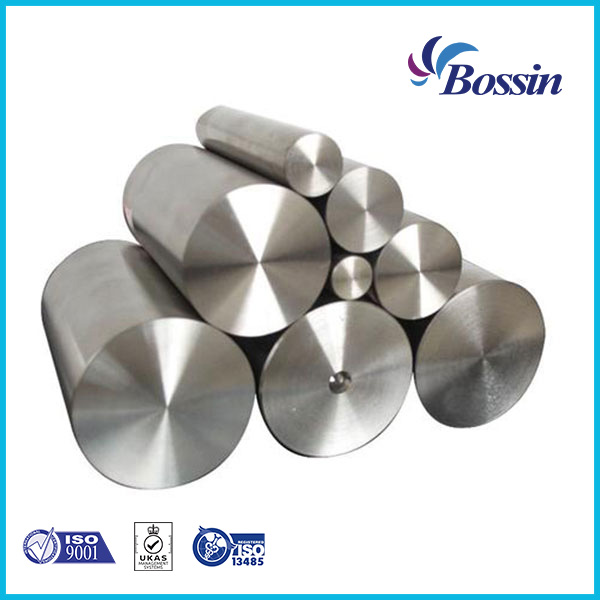

Titanium Bar ASTM F136 for Surgical Implant

Product Description

Item

Titanium Bar,Titanium Rod for medical

Grade

GR1, GR2, GR3, GR4, GR5, 6AL4V Eli, GR23

Standard

ASTM F67, ASTM F136, ISO5832-2, ISO5832-3

Specification

Dia1.0–Dia100mm × Length≤6000mm

Titanium Bars for Bone Screws：Φ3.5；Φ4.0；Φ4.5；Φ5.0；Φ5.5；Φ6.0；Φ8.0；Φ10.0

Titanium Bars for Spine：Φ13.5；Φ14.0；Φ14.2；Φ15.0；Φ16.0；Φ17.0

Titanium Bars for Bone Joint：Φ30.0；Φ35.0；Φ40.0；Φ50.0；Φ55.0；Φ60.0；Φ65.0

Titanium Bars for Dental Implants：Φ3.0-20.0mm

Dental Titanium Disc：Ф98*10-25mm，220*150*10-25mm

High-accuracy

H6 H7 H8 H9, tolerance 0.005mm

Certificate

ISO 9001:2008, ISO13485,EN10204 3.2 ,SGS The Third-Party Test Report

Microstructure

According to ETTC-2, A1-A5

Sample

Free sample — Small quantity samples are available at any time

We offer

We have complete set of production equipment for manufacturing titanium bars, covering the entire process from raw materials to finished products.

We are the only local manufacturer equipped with a continuous rolling and precision rolling line for titanium rods, combined with wire drawing machines, which have significantly enhanced production efficiency and product quality, The yield rate of titanium rods has increased by 5–10%.

Directly factory channel, Competitive price,Stable quality.

Quality guarantee: End-to-End traceability, full materials from melt to final product.

3000 tons production capability annually.

Professional Third-Party Inspection Services.such as SGS Test.

Fast delivery: We have common used size in stock,and also have semi-finished products in stock. Stock list as below,

Titanium bar ASTM F136  Dia4.0mm,Dia6.0mm, Dia8.0mm,Dia10mm,Dia12mm,Dia14mm, Dia16mm, Dia18mm,Dia20mm,Dia30mm,Dia40mm in stock

Titanium plate ASTM F136 thickness from 0.5 to 12mm in stock

Titanium plate ASTM F67 GR4 Thickness from 1.3mm to 4.5mm in stock

Quality Assurance:

—-According to globally recognized standards, such as ASTM, AMS, ASME,JIS,MIL…

—- provide third-part inspection reports.

—–Chemical composition, Mechanical properties, Microstructure,Macrostructure,Ultrasonic Inspection,Surface Contamination is strictly controlled,

—–ISO Quality Management System,ISO13485 certificate

—–Third party test like SGS before shipment
