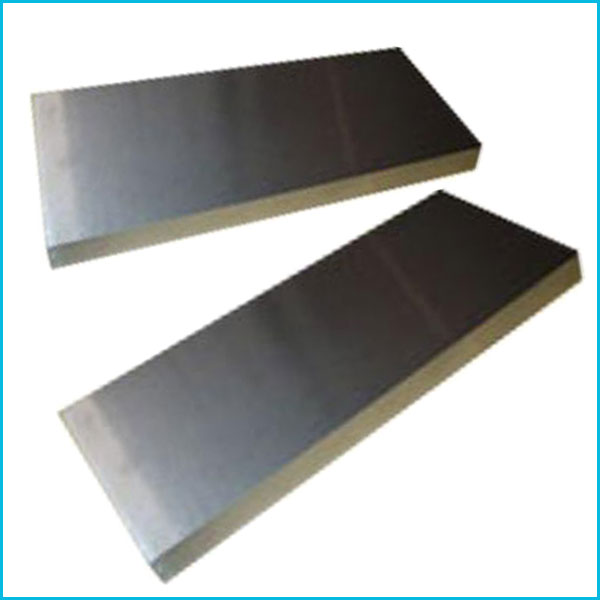

Nitinol sheet
ASTM F2063 Super elastic Nitinol alloy sheet
- Description
- Packaging & Delivery
Product Description
1.Name:
Nitinol alloy sheet
2.Material:
Mainly Nickel and Titanium
Shape Memory Alloy
Super elastic Nitinol
Low Temperature Super elastic Nitinol Alloy
Medical Nitinol alloy
Narrow Hysteresis Nitinol Alloy：TiNiCu alloy
Wide Hysteresis Nitinol Alloy：TiNiNb TiNiFe
Nitinol Flat Wires
3.Fully Annealing AF：
20℃~40℃ / 45℃~90℃/ -5℃~15℃/ -20℃~-30℃/ Active Af 33℃±3℃/ As-Ms≤5℃/ As-Ms＜150℃
4.Standard:
ASTM F2063-05 Q/XB1516 Customer specified or Industry Standard
5.Size:
Wire:Dia0.05-6.0mm
Bar: Dia3.0mm—20mm
Sheet: Thickness 0.3-10.0mm Width≤400mm Length≤2500mm
6.Chemical composition:
Ni: 55.4% –56.2% C≤0.07 H≤0.005 O≤0.050 N:≤ 0.05
7.Applications
Nitinol Alloy mainly used to make cell phone antenna, children’s toys, experimental materials, glasses leg, women bra, Women’s Sports Central, arch wires, instruments and other areas of high-quality memory alloy wire.
| Name | Grade | Transformation Temperature AF | Form |
| Shape Memory Nitinol Alloy | Ti-Ni-01 | 20 °C~ 40 °C | Wire,bar,plate |
| Ti-Ni-02 | 45 °C~ 90 °C | Wire,bar,plate | |
| Super elastic Nitinol Alloy | TiNi-SS | -5 °C~ 5 °C | Wire,bar,plate |
| Low Temperature Super elastic Nitinol Alloy | TN3 | <5 °C | Wire,bar,plate |
| TNC | <-15 °C | ||
| Medical Nitinol Alloy | TiNi-SS | 33 ± 3 °C | Wire,bar,plate |
| Narrow Hysteresis Nitinol Alloy | Ti-Ni-Cu | As-Ms ≤ 5 °C | Wire,bar |
| Wide Hysteresis Nitinol Alloy | Ti-Ni-Fe | As-Ms ≤ 150 °C | Wire, bar |
- Packaging Details: inner packaging: plastic bag packaged with supporting thing inside; outer packaging: Polywood Case or Wooden Case with strips as you request
- Delivery Detail: Within 5~15 days
